Raking struts

Paired struts, straight or curved, set at an angle to the tiebeam and framed into the principal rafters. Unlike other struts, raking struts may support a purlin, since the term raking post is not found

Back to all words

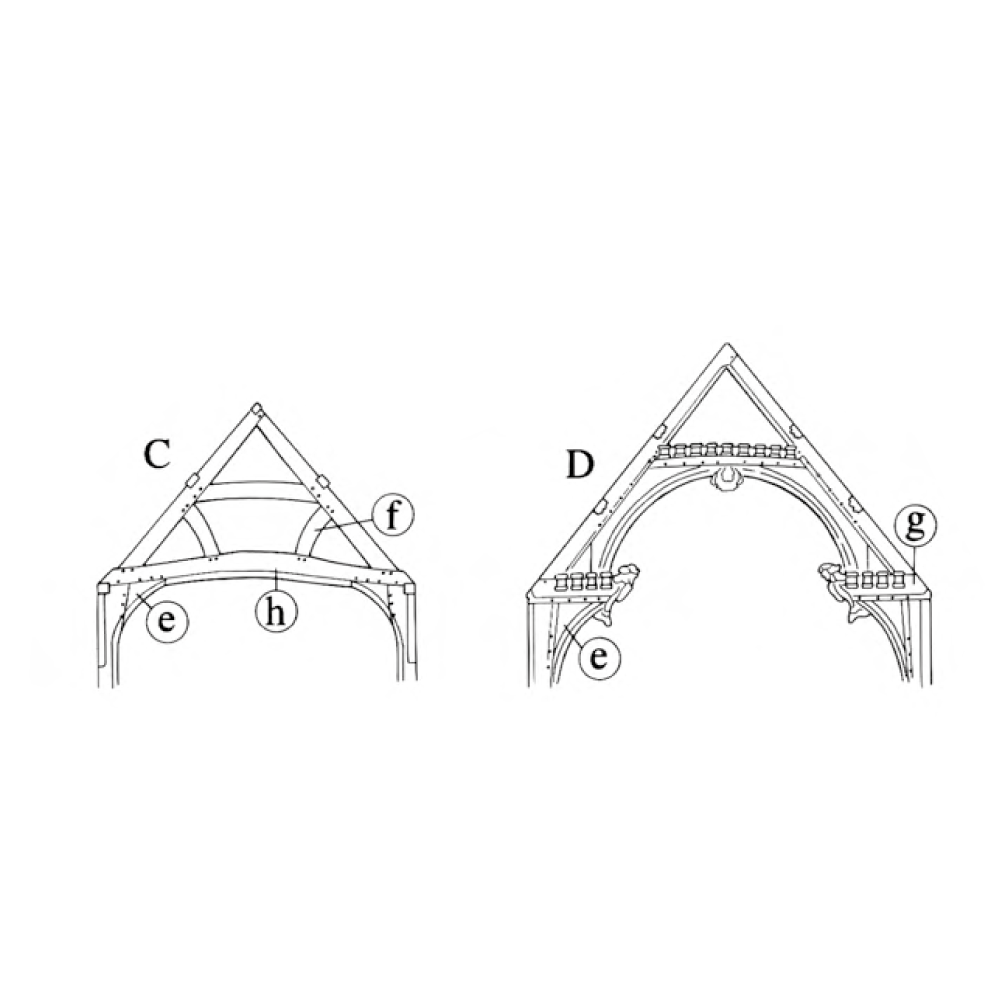

8 - Roof Trusses

C*) Principal rafter truss D) False hammer beam truss

e*) Knee brace f) Raking strut g) Stub tiebeam h*) Cambered tiebeam
