Raised aisle truss

A Raised aisle truss has a complete aisled structure standing on a tiebeam. It has been suggested that this term should only be used when the truss has a Dropped tiebeam (Walker, 2011, 36), contrasted to a Queen-post truss with a standard tiebeam, but this is not generally agreed.

Compare drawings Aisle B and C

see also Dropped tiebeam

Back to all words

1 - Aisled Construction

1 - Aisled Construction

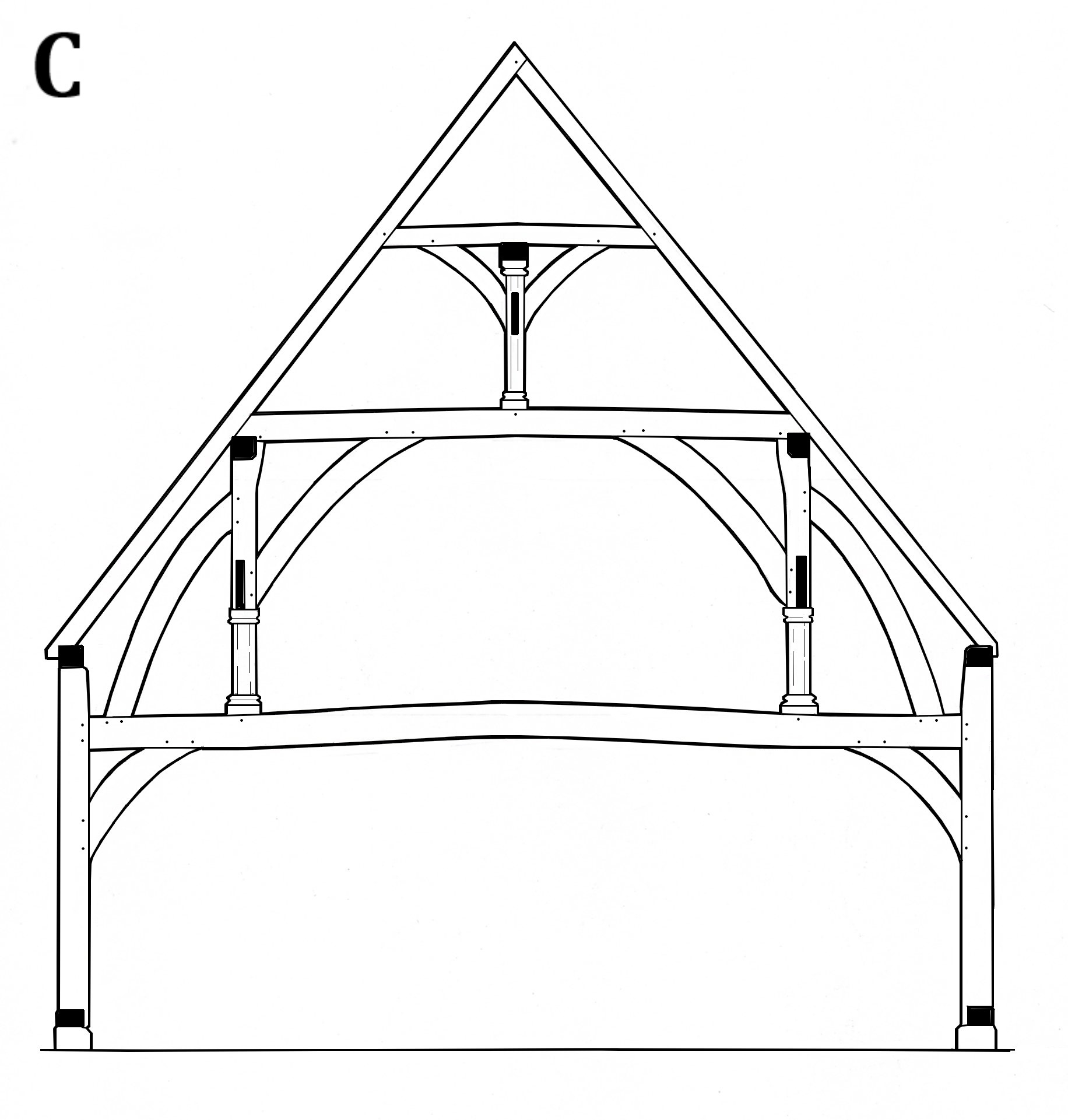

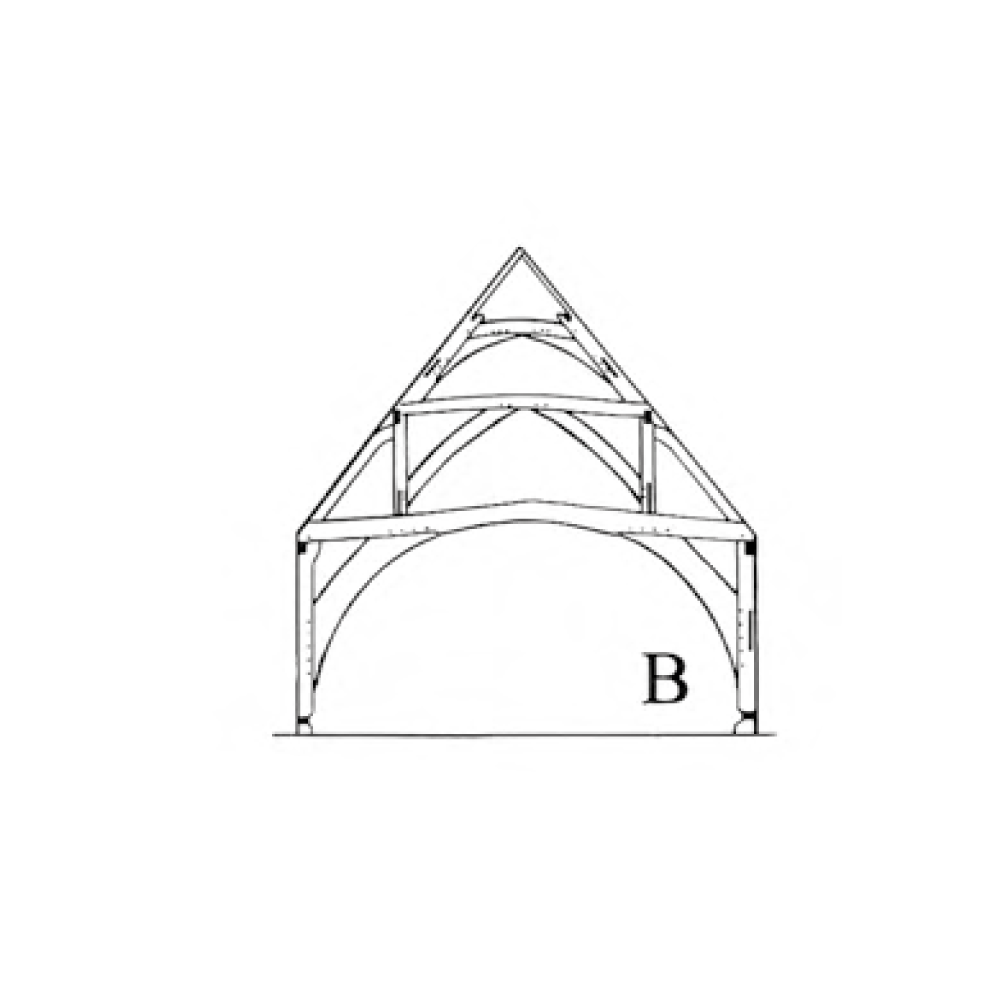

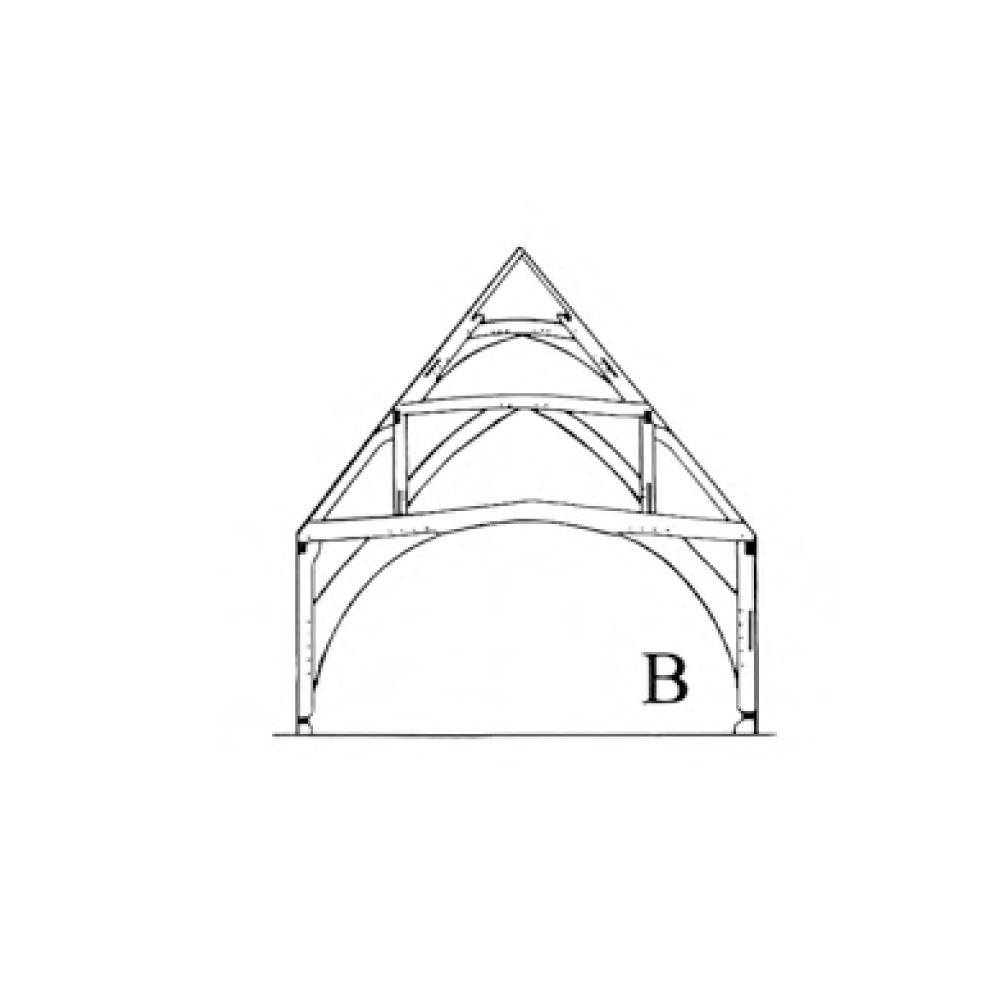

B) Raised-aisle truss on a tiebeam C) Raised aisle truss on a dropped tiebeam
