Double arch-braced truss

Truss in which two pairs of arch braces form a continuous curve from the wall heads or below to meet in the centre of the collar.

see also Waggon roof

Back to all words

4 - Braces

4 - Braces

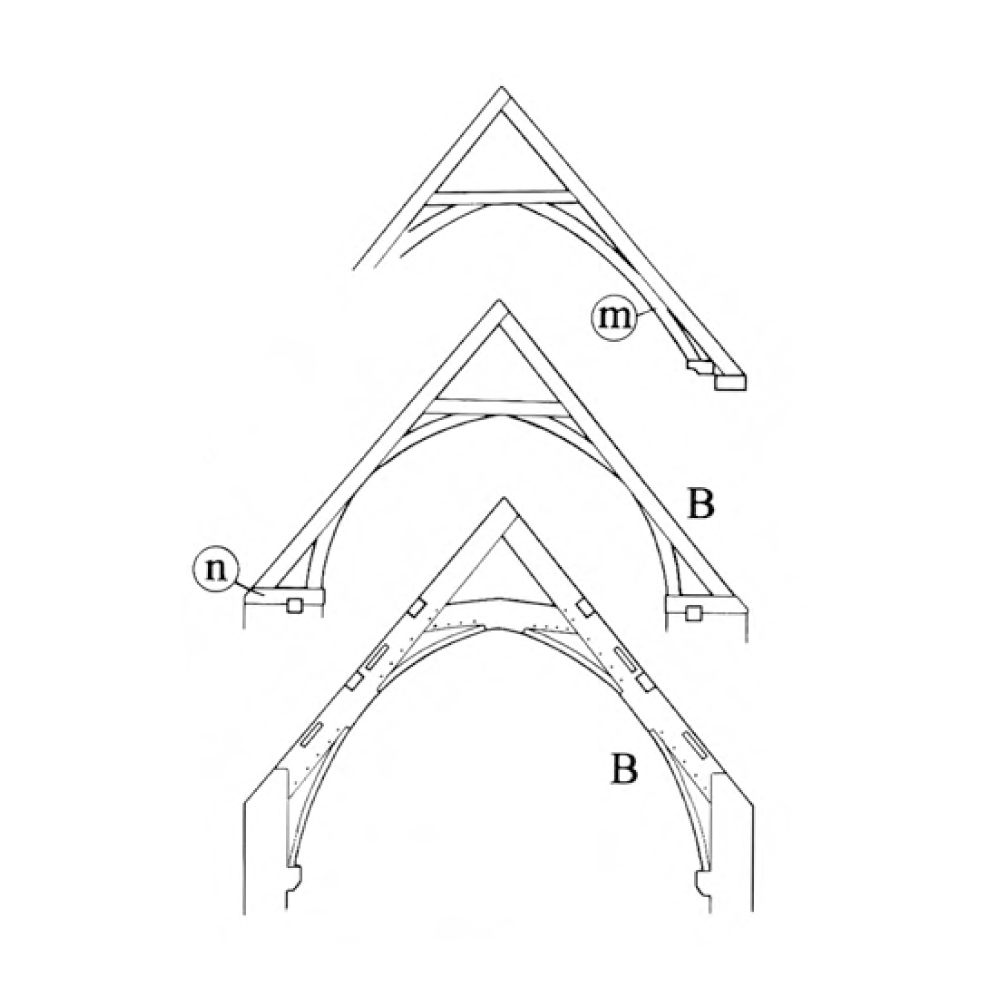

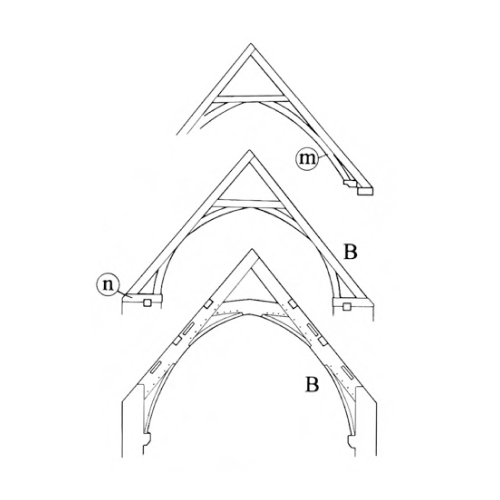

B) Double arch-braced truss

m*) Single arch brace n*) Sole plate
